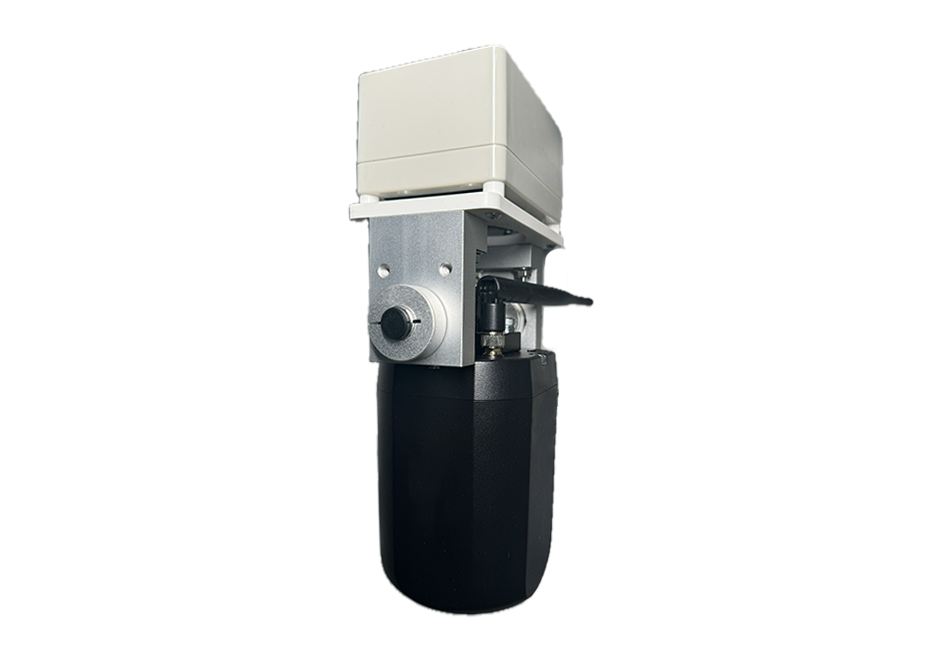

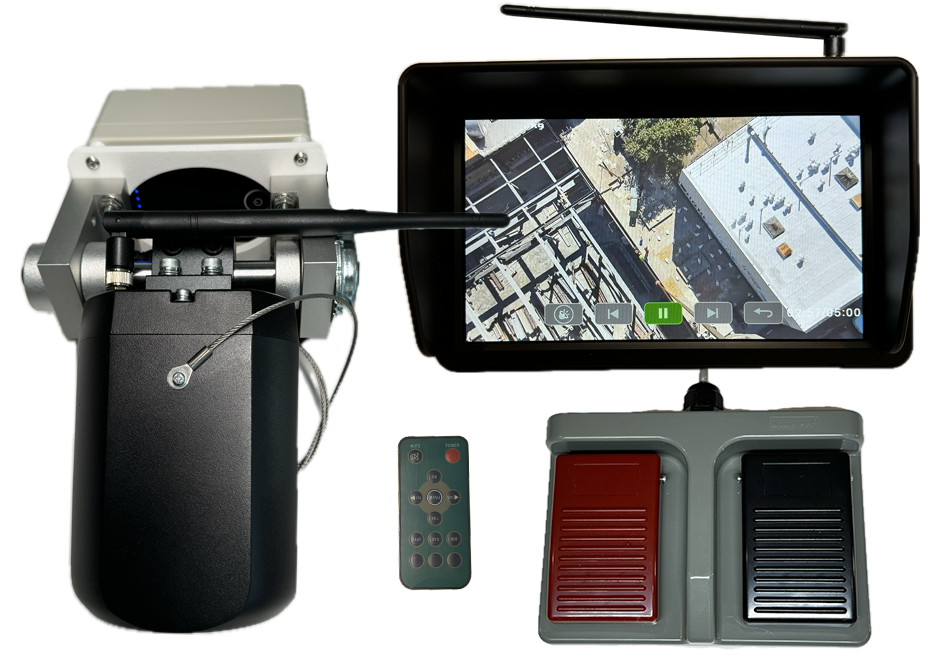

POPiTCam 30x Zoom Boom Tip HD Wireless Camera System
HDPS30
$1999
$2499
Quick and easy Pop n Play Installation Seeing is Believing yOur eYe in the skY AI pedestrian detection. Great for setting plank and steel. Increase production and safety. Also great for operators on the go who switch cranes on a daily basis.
Features

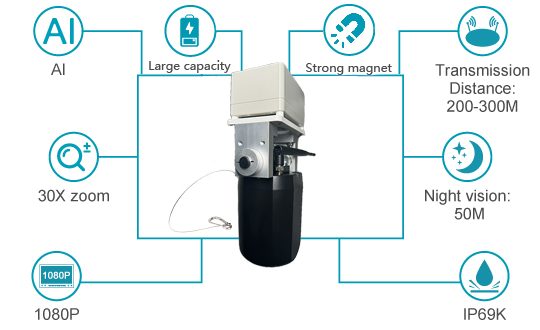

- • 【30X Zoom】Optical 30x zoom mechanism, digital anti shake, capable of clear monitoring of distant targets
- • 【Flexible Zooming】Can control zoom-in/out and switch between manual/automatic zoom through a foot switch, improving camera working efficiency
- • 【AI Pedestrian Detection】Real time detection of pedestrians around the lifting goods to avoid accidents during operation
- • 【300M Transmission Distance】Meet the requirements for long-distance video transmission of lifting machinery and cranes
- • 【50M Night Distance】Equipped with 4 high-power infrared lights, ensuring 50 meter high-definition night vision for night-time site operation
- • 【IP69K Waterproof】works under all weather conditions, including rain and snow
- • 【 Quick and Easy Pairing 】Pairing is only needed for the first time, and both automatic and manual pairing are supported
Image Device | 1/2.9” CMOS SENSOR |
Wireless Transmission | built-in 2.4G wireless emitter |
Transmission Power | 20dBm |
Transmission Distance | 200-300m |
Operation Frequency | 2400 ~ 2483.5MHZ |
Resolution | 1080P |
Effective Pixels | 1920(H) X1080(V) |
Optical Zoom | 30X |
Lens Length | 4.85 ~ 138.66mm |
Aperture Value | 1.65(W) ~ 4.70(T) |
Horizontal Angle | 57.69°(W) ~ 2.2°(T) |
Visible Distance | 5-200m |
Focalization Mode | Auto focus |
IR-Cut Function | Auto Switch |
Night Vision Distance | 50m |
Waterproof Rating | IP69K |
Power Supply | DC10 ~ 32V |
Operating Temperature | -20℃ ~ +60℃ |
Anti-vibration | ISO 16750-3 2012 (5.9G) |
Dimension | 220(W) x 110(H) x 106(D) mm |
Manual
Accidents frequently unseen in high altitude operations such as cranes/tower cranes?
Extra personnel needed for blind spot operation and often difficult to hear the instructions?
Limited visibility of the operator lowers the operation efficiency?
Unsafe signaling of cranes?
...
1080P 30x zoom&wireless solution for crane We deliver efficiency and allow zero accidents
Optical 30x zoom
1080P zoom&wireless crane camera is designed with optical 30x zoom movement, digital anti-shake, and is to be installed at the boom tip of the crane to look down below, in which way the operator can obtain an unobstructed view of the hook, thus the operation is made safer, faster and more accurate. The camera makes it possible to STOP at any urgent situation on the construction site, such as to avoid blind lifts when the loads are unbalanced or colliding. Such quick moves helps avoid any potential accidents.
Built-in AI algorithm
Real-time detection of people around the lifting zones in crowded construction sites or busy ports reminds the operator of any collision risks.
Flexible zooming method
Can control zoom-in/out and switch between manual/automatic zooming through a foot switch, improving camera working efficiency.
Wireless transmission distance as far as 300 meters
Can transmit stable and clear real-time videos wirelessly and for a long distance, fit for various high-altitude operation scenarios, such as cranes .
4 high-power infrared lights, 50 meter high-definition night vision
Clear vision at night operation.
IP69K waterproof, workable even in rain and snow
Works under all weather conditions, very durable.
Quick and easy pairing
Support auto pairing. After the first pairing, the camera and the monitor will only need to be powered separately to work together. Even after power disconnection, the minute when the power is reconnected, the signals can be transmitted automatically.
Applications
1080P 30x zoom&wireless crane camera can realize long-distance wireless monitoring with high-definition and stable image quality, suitable for high-altitude work scenarios such as crane cargo loading and unloading in ports, as well as for some other industrial and construction machinery

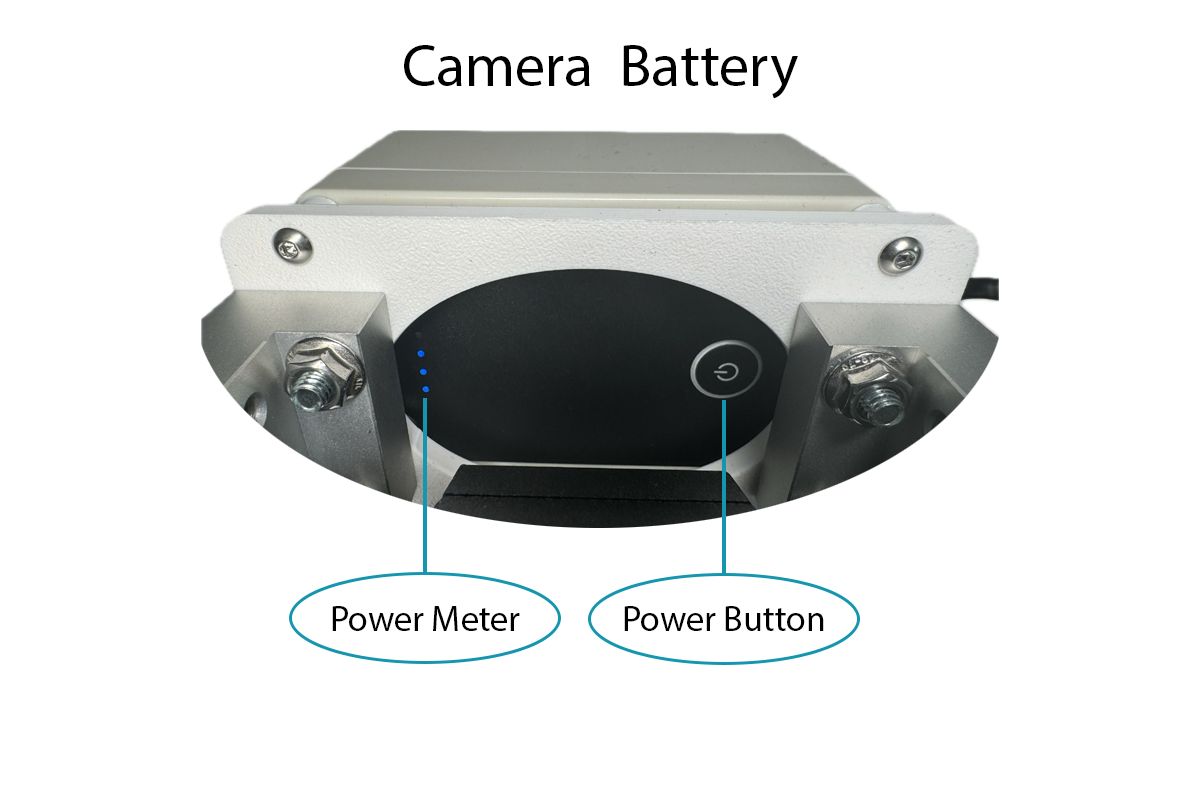

Magnetic Rechargeable Battery Pack
Magnetic rechargeable battery provides multiple protection functions, including overcharge protection during charging, overvoltage protection during discharge, overcharging protection, overdischarge protection, ensuring safe and reliable use. The product is equipped with strong magnetic adsorption, making it convenient for use in various environments. Up to 12-18 hours discharging time.
Features
- • 【Large capacity】Battery capacity reaches 25000mAh, providing powerful and long-lasting power support
- • 【Multi-Voltage Charging】Supports multi-voltage charging from 5V to 14V
- • 【Multiple Protection Features】Includes charging overvoltage protection (14.5-24V), discharging overvoltage protection (13.5-18V), overcharge protection, over-discharge protection, discharge overload protection, discharge short-circuit protection, and temperature protection
- • 【Strong Magnetic Adsorption】Equipped with strong magnetic adsorption function, it can be firmly fixed on vehicles or other metal surfaces
Battery Capacity | 25000mAh/3.6V |
Charging Voltage | DC 5~14V |
Charging Current | 5V: 2A MAX/12V:1.1A MAX |
Charging Time | 9.5H (DC 12V at 25℃)/15H (DC 5V at 25℃) |
Discharging Voltage | 12.3±0.3V 0.8A |
Discharging Time | 27H MAX (3W) |
Charging Temperature | 0 ~ +45℃ |
Discharging Temperature | -20~60℃ |
Storage Temperature | -20~60℃ |
Waterproof Rating | IP66K |
Dimension | 120x79.5x61(mm) |
Weight | 870g |
Your Boss forbids you to touch the electrical system of the crane?
You jump from crane to crane and are looking for a quick installation method to reap the benefits of having a camera to see?
Heavy Duty Magnetic Rechargeable Battery
25000mAh Ultra High Capacity and Multi-Voltage Charging
The battery capacity reaches 25000mAh, providing powerful and long-lasting power support, ensuring long-term operation; at the same time, it supports multiple voltage outputs, offering wide compatibility.
Strong Magnetic Adsorption
Equipped with a strong magnetic adsorption function, it can be firmly fixed on vehicles or other metal surfaces, making it more convenient to use.
Connection
10.1 inch HD Digital Wireless Quad-view Monitor
10.1 inch HD Digital Wireless Vehicle Quad-view Monitor is easy to install and has built-in video recorder. It supports quad view and auto pairing; good for crane, truck, trailer, etc. It can work with HD wireless cameras to form excellent Wireless Vehicle Monitor System.
Features
- • Support 4CH wireless camera and wireless transmitter.
- • A variety of monitors modes, quad view, double view and single view to meet various monitoring needs and reduce blind spots.
- • With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.
- • Manual and automatic pair are supported, and the setting is quick and simple. After pairing, you only need to connect the power supply in the vehicle to work.
- • Supporting 1080P/720P camera input.
- • The operation is more convenient, simple and quick, more durable and smoother, and the service life is prolonged.
- • Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.
- • Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
- • Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
- • Support power fail safeguard by super-capacitor.
- • Rear view parking lines can be configured.
LCD Dimension | 10.1 |
Resolution | 1024x 3 (RGB) x600 |
Contrast | 700:1 |
Brightness | 600cd/m² |
Viewing Angle | U:85 / D:85, R/L:85 |
Pixel Size | 0.1506(W) x 0.1432(H) |
Aspect Ratio | 16:9 |
Channel | 4 CH |
Operating Frequency | 2408MHz ~ 2478MHz(ISM band) |
Receiving Sensitivity | -78dBm |
Transmitting Distance | Max. 300m |
Decompression Form | H.264 |
Modulation | FHSS |
Delay | Min. 130ms |
Storage | Micro SD Card, up to 128G |
System Format | PAL / NTSC |
Power Supply | DC 10-32V |
Power Consumption | Max.10W |
Loudspeaker | 1.5W/8Ω |
Operating Temp. & Humidity | -20~+70ºC,RH90%MAX |
Storage Temp. & Humidity | -30~+80ºC,RH90%MAX |
What are the benefits of 10.1 inch Digital Wireless Vehicle Monitor?
Easy Installation + Instant Pairing = Save more money and efficiency
After being paired for the first time, the wireless vehicle monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.
Strong anti-interference, Stable connection
Operating frequency: 2400MHz ~ 2483.5MHz.
Open transmission distance up to 984ft (300m)
Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.
